Trivial pcb with curved trace
from dave@feddit.uk to askelectronics@discuss.tchncs.de on 05 Nov 2025 10:10
https://feddit.uk/post/39041413

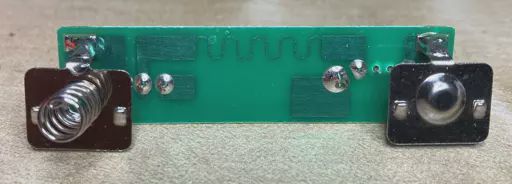

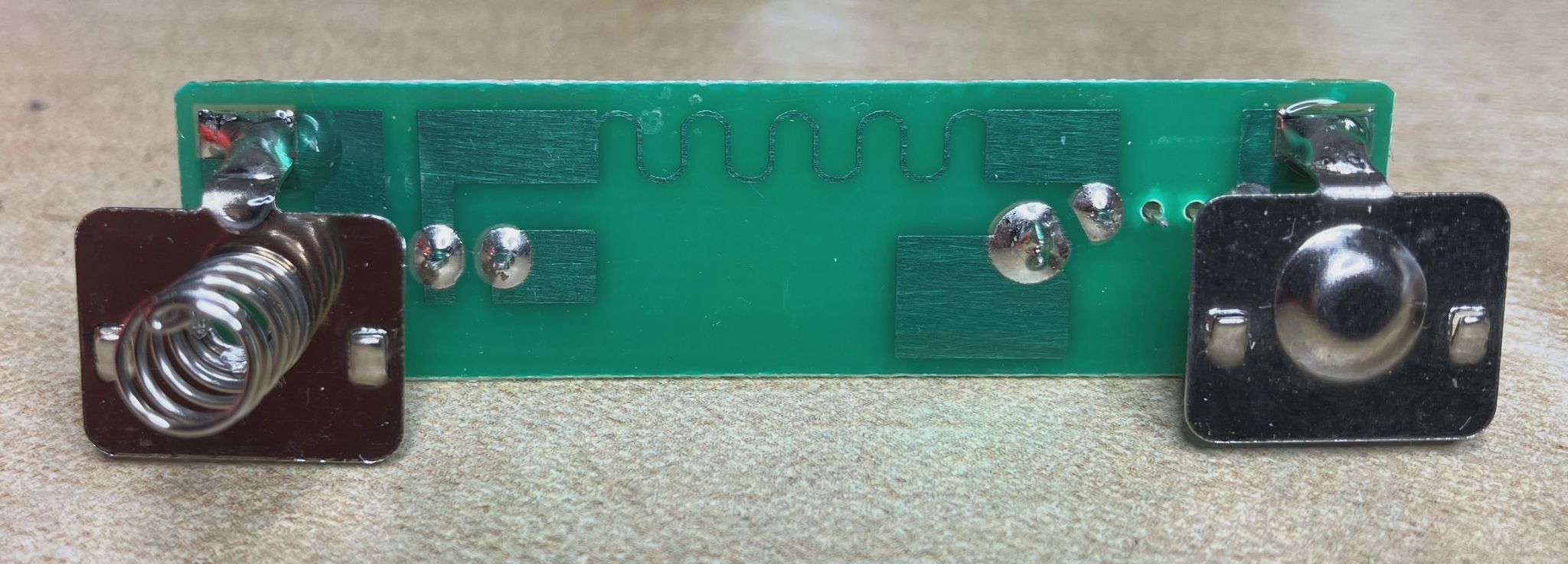

I’m replacing a trivial pcb in a battery pack for a small fan. It’s 6V (4xAA) with a SPST top left and a USB socket top right. But why on earth would the power line on the pcb follow that curved path? There are no other components, just the 2 ends of the battery pack and a plastic housing.

Maybe just ‘because you can’?

#askelectronics
