How do I get my oscilloscope to read voltage correctly?
from PriorityMotif@lemmy.world to askelectronics@discuss.tchncs.de on 17 Feb 02:35
https://lemmy.world/post/43228247

I bought a cheap Hantek 6022BE to learn with and I’m just trying to measure some voltage to check if it’s accurate. I’m using openhantek6022 github.com/OpenHantek/OpenHantek6022 and also hscope on android. I’m measuring a 19v laptop power supply with the 10x setting on the probe and also a set of leads with a 20x attenuator. When I measure the power supply with my dmm I’m getting 19.22V with the scope I’m getting much higher or lower depending on where I set the voltage per division. Both programs have a calibration function which I did.

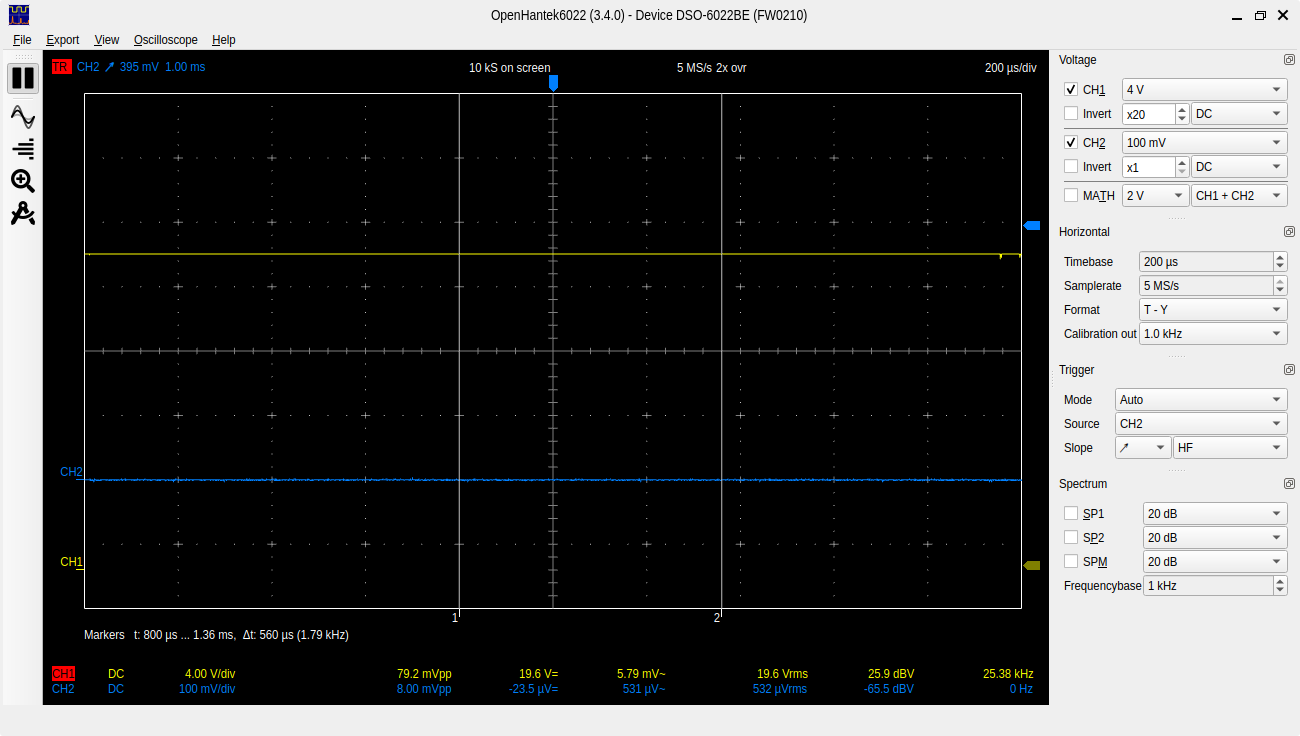

20x attenuator showing 19.6v

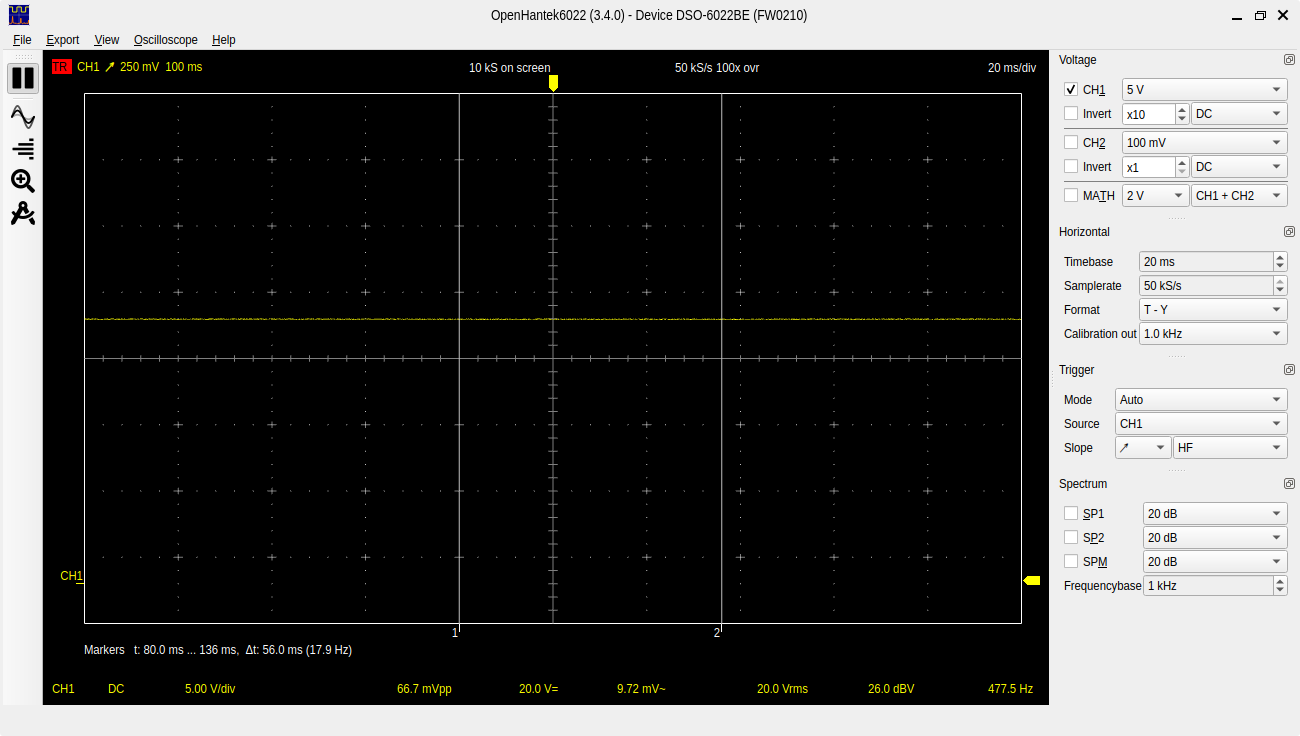

10x probe showing 20v

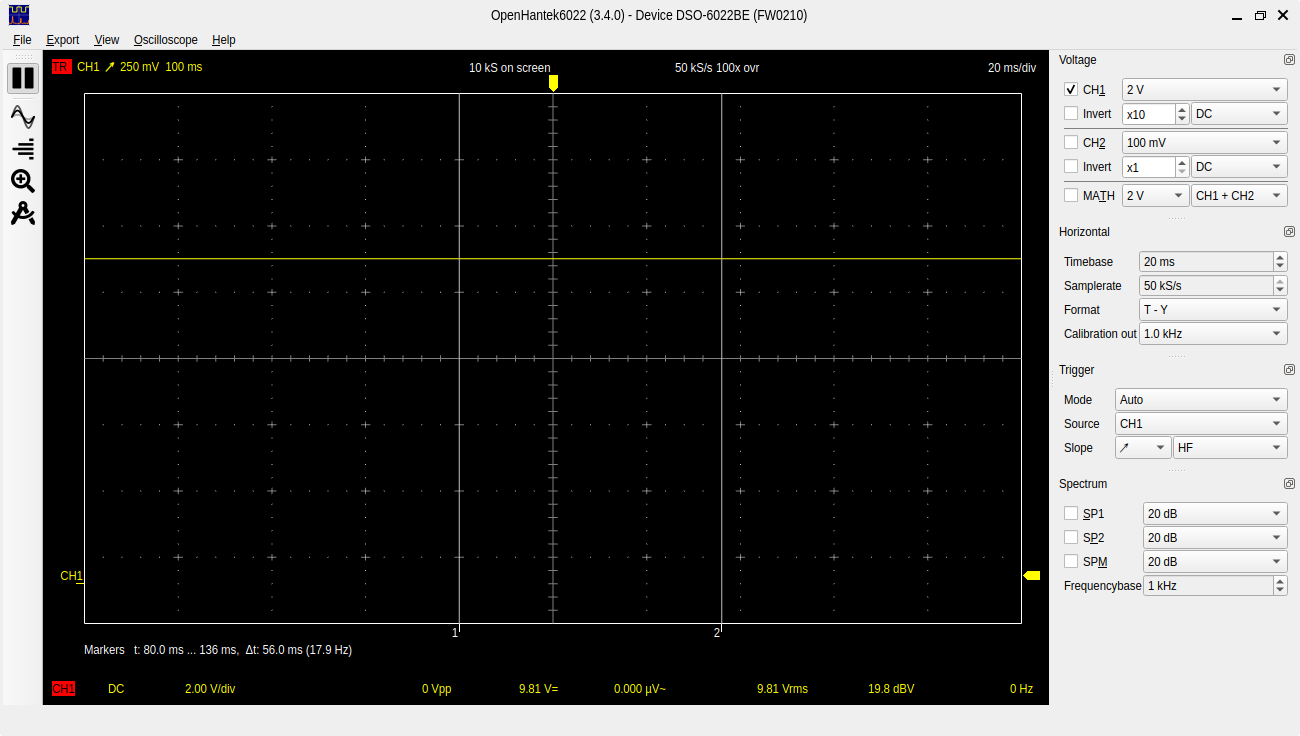

10x probe with 2v per division setting only showing 9.81V

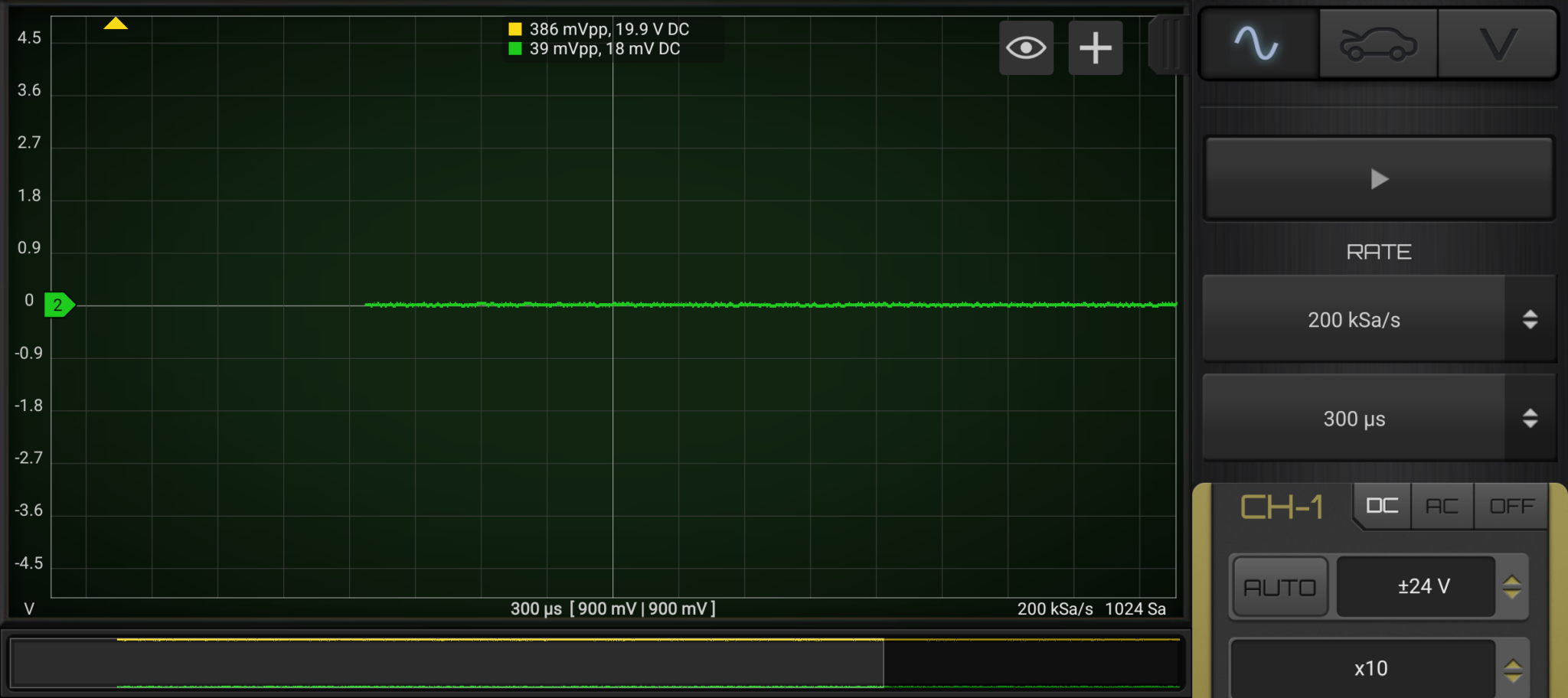

Hscope showing 19.9v

#askelectronics
